Dermaga Marina L-Pier 24 × 12,5 m
An aluminium L-pier: a 24 m pier turning into a 10 m arm at its end, forming a sheltered berth. WPC deck, 9 m gangway, pile guides, and mooring cleats.
All Products
Product Description

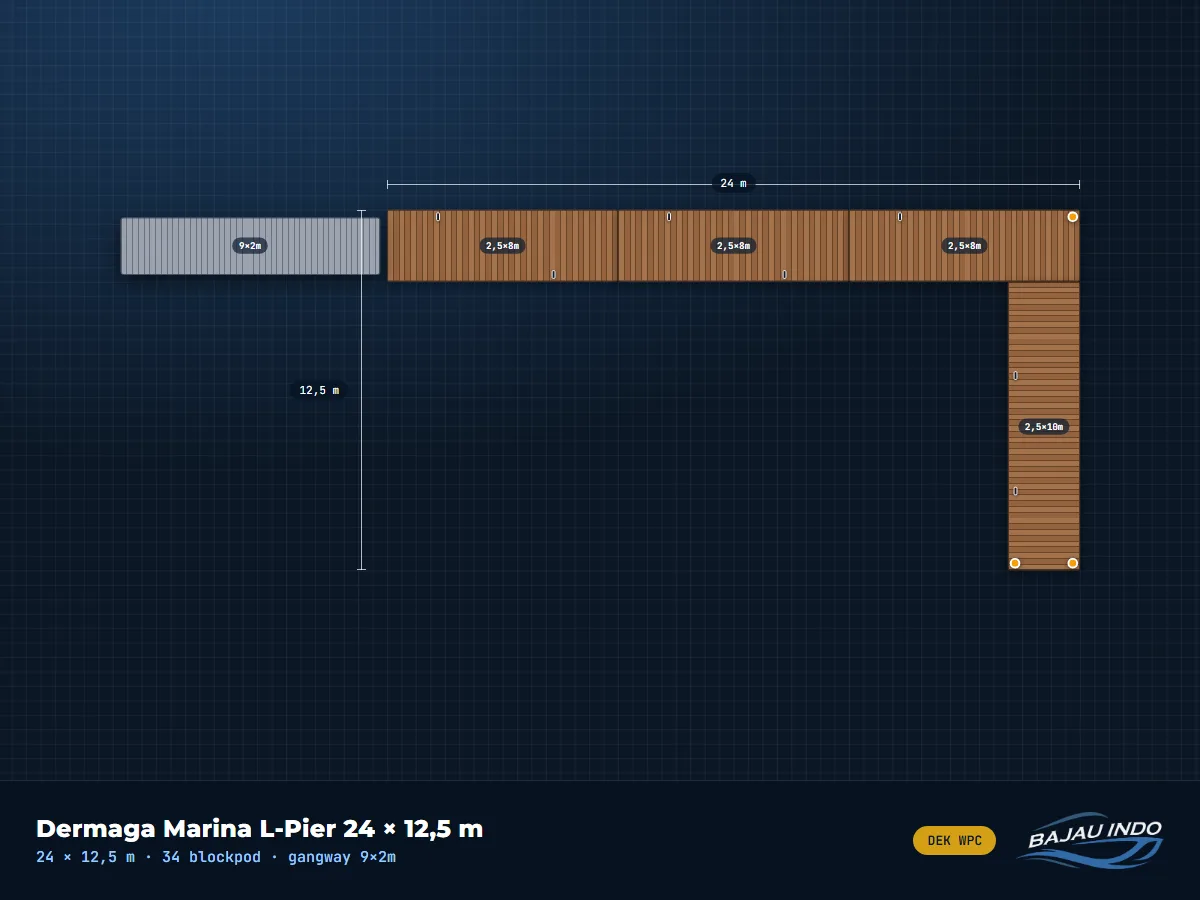

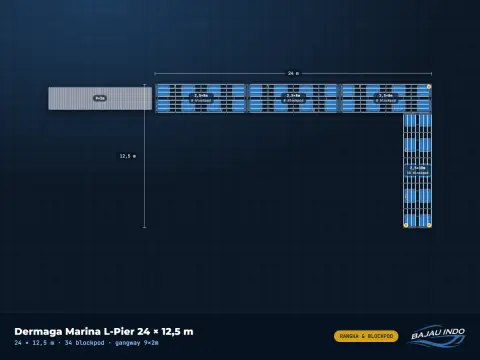

The 24 × 12.5 m Marina L-Pier combines a 3-section pier (2.5 × 8 m) with a 2.5 × 10 m pontoon arm turning at its end. The arm creates a corner sheltered from current or waves from one direction, where boats can berth more calmly. The L-shape is popular at resorts, private docks, and small marinas that want to use a corner of the water. A WPC deck on an aluminium frame with LLDPE blockpods makes it weatherproof, while pile guides at the arm end keep the dock in place. - Overall size 24 × 12.5 m (excluding gangway), deck area ±85 m² - Sections: 3 × pontoon 2.5×8m, 1 × pontoon 2.5×10m - Marine-grade aluminium alloy frame, WPC deck - 34 LLDPE floating cubes (blockpods) 120 × 100 cm - 9×2m gangway to shore - 3 pile guides Ø406 mm (16 inch) for guide piles - 7 stainless steel mooring cleats - Final load capacity, pile depth, and mooring are calculated by our engineers for your site Need another shape or size? Lay it out in the Aluminium Dock Designer (bajauindo.com/drawing/dermaga-aluminium) and send the design to our team.
Product Gallery
Product Highlights
Corrosion & extreme UV resistant
LLDPE material resistant to seawater, mud, and direct sunlight exposure.
Polyurethane Insulation
PU core provides stable buoyancy and effectively dampens wave shocks.
Modular & flexible
Can be combined with all other pontoon types for custom dock configurations.
TKDN & ISO Certified
Meets domestic and international product standards, ready for government & private projects.
Ideal For
Drawing Tool
Design your own dock
