Dermaga Marina Pier Lurus 16 × 2,5 m
A 16-metre straight aluminium floating pier with a 2.5 m WPC deck, 9 m gangway to shore, end pile guides, and mooring cleats on both sides. Boats berth all along its length.
All Products
Product Description

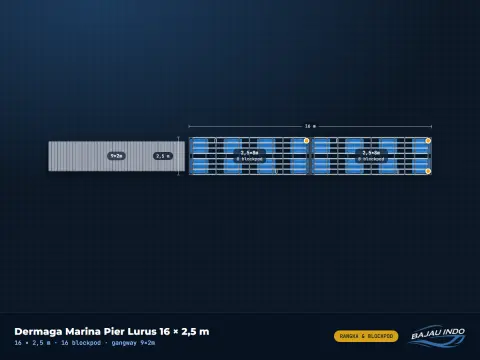

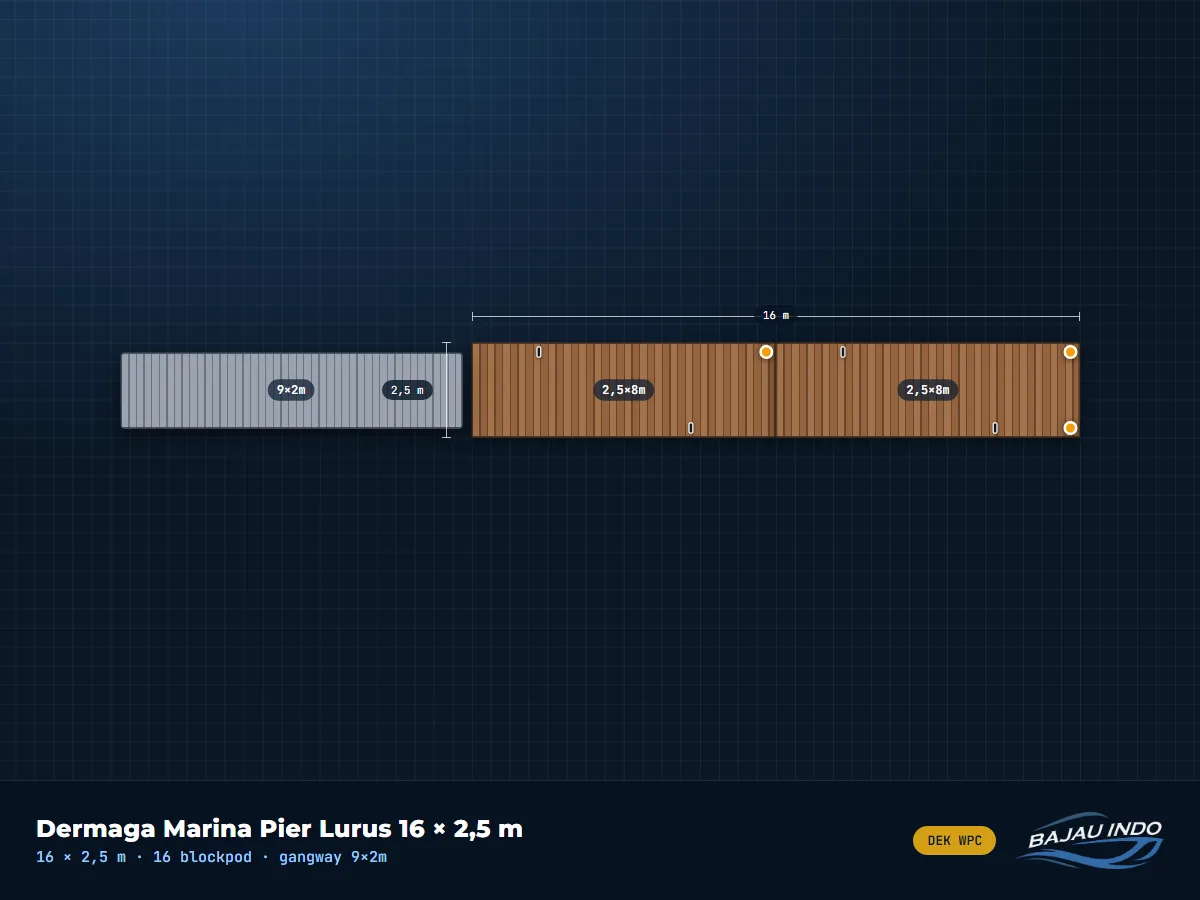

The 16 × 2.5 m Straight Marina Pier is made of 2 aluminium pontoon sections of 2.5 × 8 m joined end to end, giving 16 metres of berthing on both sides. A 9 m gangway links the pier to shore and adjusts its slope as the water level changes, while pile guides at the end hold the dock against current and wind. Each section floats on LLDPE blockpods bolted to the aluminium frame, finished with a textured, non-slip WPC deck that never needs repainting. A straight pier is the most efficient marina layout where the site is narrow but must reach deeper water. - Overall size 16 × 2.5 m (excluding gangway), deck area ±40 m² - Sections: 2 × pontoon 2.5×8m - Marine-grade aluminium alloy frame, WPC deck - 16 LLDPE floating cubes (blockpods) 120 × 100 cm - 9×2m gangway to shore - 3 pile guides Ø406 mm (16 inch) for guide piles - 4 stainless steel mooring cleats - Final load capacity, pile depth, and mooring are calculated by our engineers for your site Need another shape or size? Lay it out in the Aluminium Dock Designer (bajauindo.com/drawing/dermaga-aluminium) and send the design to our team.
Product Gallery
Product Highlights
Corrosion & extreme UV resistant
LLDPE material resistant to seawater, mud, and direct sunlight exposure.
Polyurethane Insulation
PU core provides stable buoyancy and effectively dampens wave shocks.
Modular & flexible
Can be combined with all other pontoon types for custom dock configurations.
TKDN & ISO Certified
Meets domestic and international product standards, ready for government & private projects.
Ideal For
Drawing Tool
Design your own dock
