Dermaga Marina Sisir 1 Sisi 32 m
A 32 m aluminium finger marina with 3 berthing fingers (2 × 7.5 m) on one side. Each boat gets its own slip; complete with a 9 m gangway, pile guides at the finger tips, and cleats.
All Products
Product Description

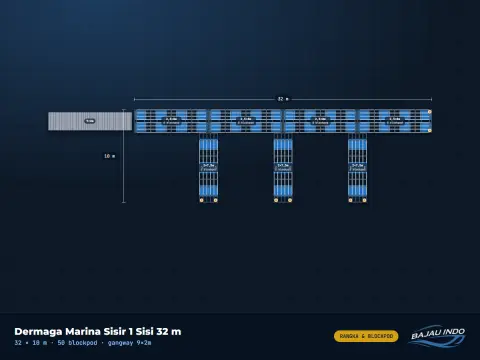

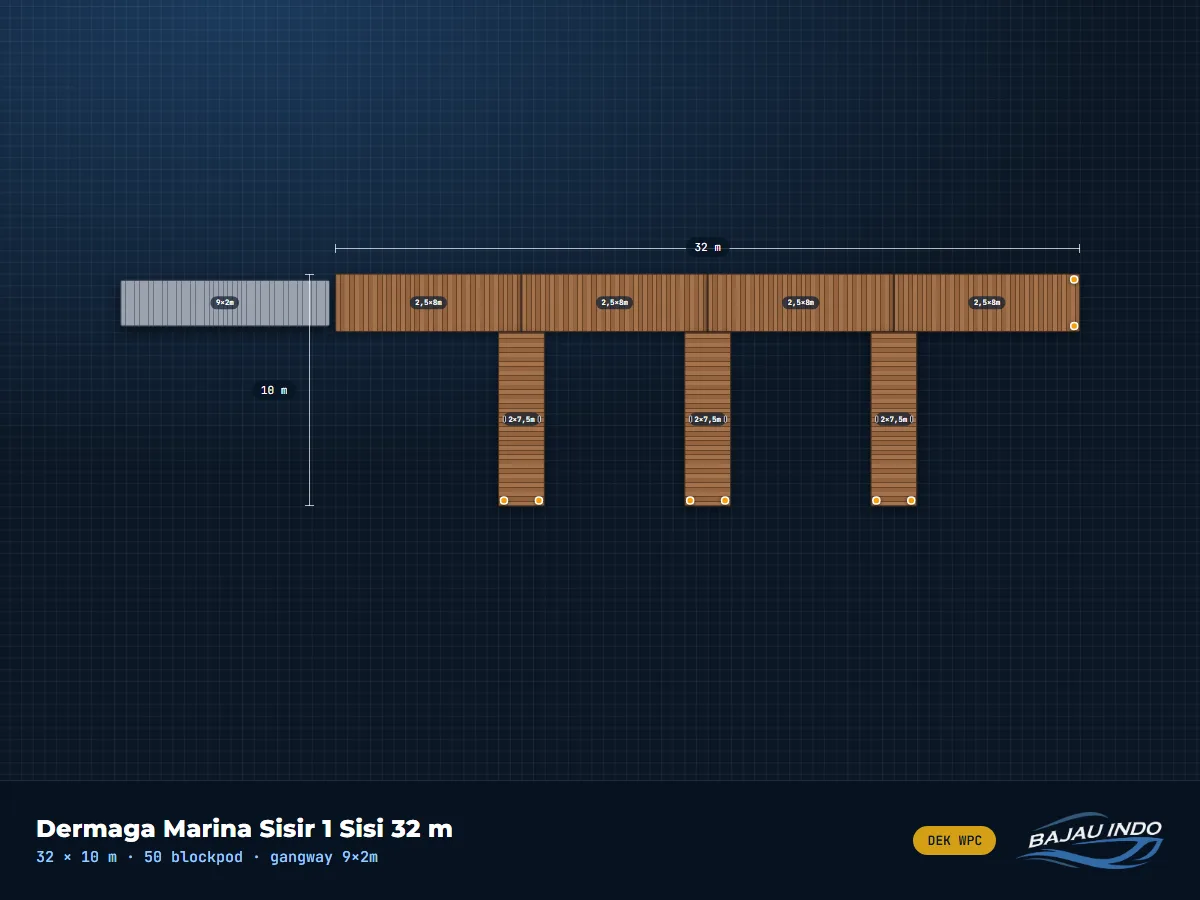

The 32 m One-Sided Finger Marina is the classic marina layout: a 32-metre main walkway with 3 berthing fingers (2 × 7.5 m) on one side. Slips form between the fingers where boats come in and berth neatly, so one dock holds many boats without them touching. Each finger tip has a pile guide to hold it against boat and wind loads, plus stainless cleats on both sides. The other side of the walkway stays free — ideal along a seawall or bank — and fingers can be added in stages as the marina grows. - Overall size 32 × 10 m (excluding gangway), deck area ±125 m² - Sections: 3 × pontoon 2×7.5m, 4 × pontoon 2.5×8m - Marine-grade aluminium alloy frame, WPC deck - 50 LLDPE floating cubes (blockpods) 120 × 100 cm - 9×2m gangway to shore - 8 pile guides Ø406 mm (16 inch) for guide piles - 6 stainless steel mooring cleats - Final load capacity, pile depth, and mooring are calculated by our engineers for your site Need another shape or size? Lay it out in the Aluminium Dock Designer (bajauindo.com/drawing/dermaga-aluminium) and send the design to our team.
Product Gallery
Product Highlights
Corrosion & extreme UV resistant
LLDPE material resistant to seawater, mud, and direct sunlight exposure.
Polyurethane Insulation
PU core provides stable buoyancy and effectively dampens wave shocks.
Modular & flexible
Can be combined with all other pontoon types for custom dock configurations.
TKDN & ISO Certified
Meets domestic and international product standards, ready for government & private projects.
Ideal For
Drawing Tool
Design your own dock
