Dermaga Marina Speedboat 2 Sisi 32 m
A 32 m aluminium speedboat dock with 12 fingers (2 × 6 m) on both sides — many ±3 m slips in one structure for a large speedboat fleet.
All Products
Product Description

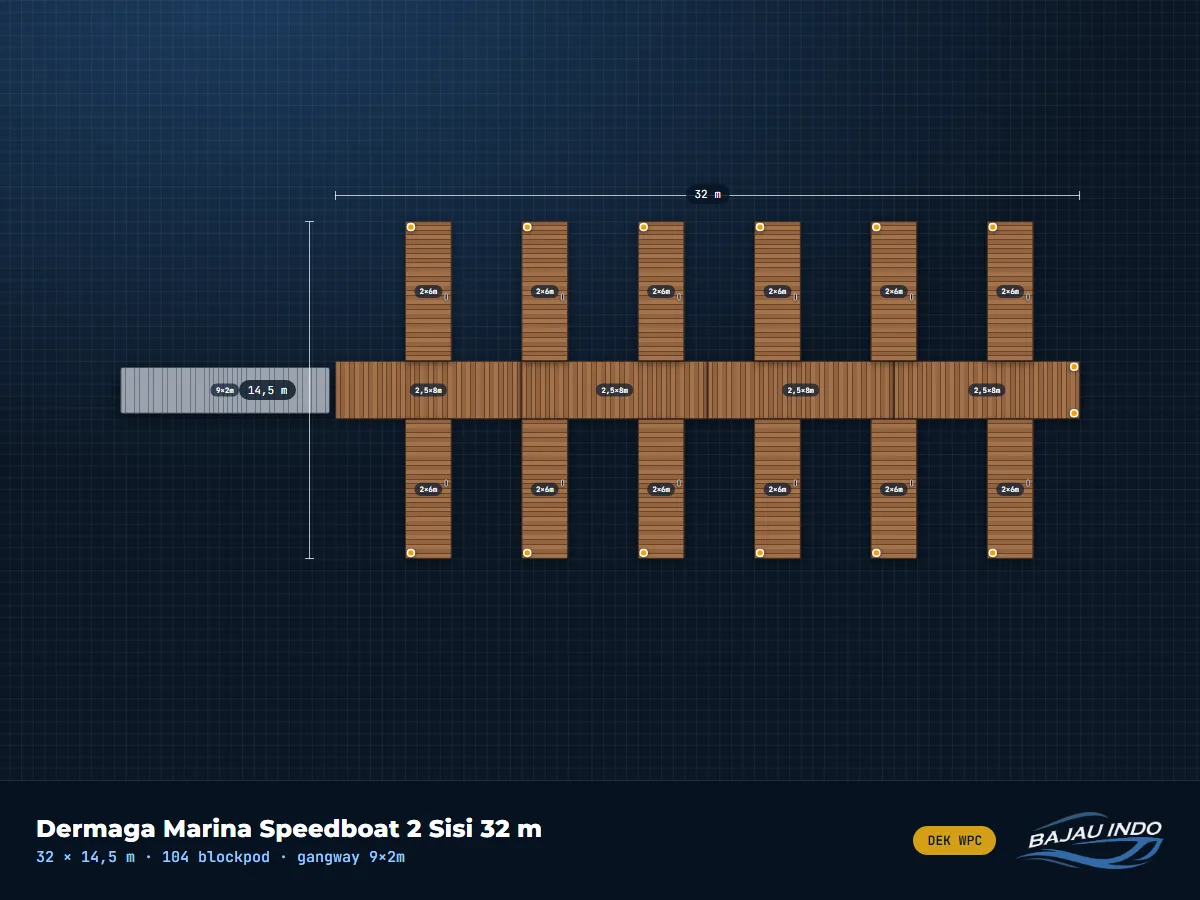

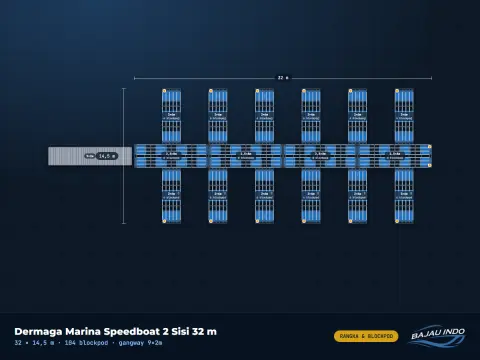

The 32 m Double-Sided Speedboat Dock doubles the capacity of a speedboat dock by fitting 2 × 6 m fingers on both sides of the walkway — 12 fingers in total. The result is rows of closely spaced ±3 m slips above and below the walkway, ideal for a large fleet. Operators can group the fleet by side, for example arrivals and departures, for smoother passenger flow. Pile guides at the finger tips, cleats along the sides, and a 9 m gangway to shore equip it for busy daily operation. - Overall size 32 × 14.5 m (excluding gangway), deck area ±224 m² - Sections: 12 × pontoon 2×6m, 4 × pontoon 2.5×8m - Marine-grade aluminium alloy frame, WPC deck - 104 LLDPE floating cubes (blockpods) 120 × 100 cm - 9×2m gangway to shore - 14 pile guides Ø406 mm (16 inch) for guide piles - 12 stainless steel mooring cleats - Final load capacity, pile depth, and mooring are calculated by our engineers for your site Need another shape or size? Lay it out in the Aluminium Dock Designer (bajauindo.com/drawing/dermaga-aluminium) and send the design to our team.
Product Gallery
Product Highlights
Corrosion & extreme UV resistant
LLDPE material resistant to seawater, mud, and direct sunlight exposure.
Polyurethane Insulation
PU core provides stable buoyancy and effectively dampens wave shocks.
Modular & flexible
Can be combined with all other pontoon types for custom dock configurations.
TKDN & ISO Certified
Meets domestic and international product standards, ready for government & private projects.
Ideal For
Drawing Tool
Design your own dock
