Dermaga Apung Bentuk-U 8 × 5,5 m
A U-shaped floating dock with a 5 × 4 m berthing pocket in the middle. A boat or jet ski slips in and is sheltered on three sides — great for small marinas and rentals.
All Products
Product Description

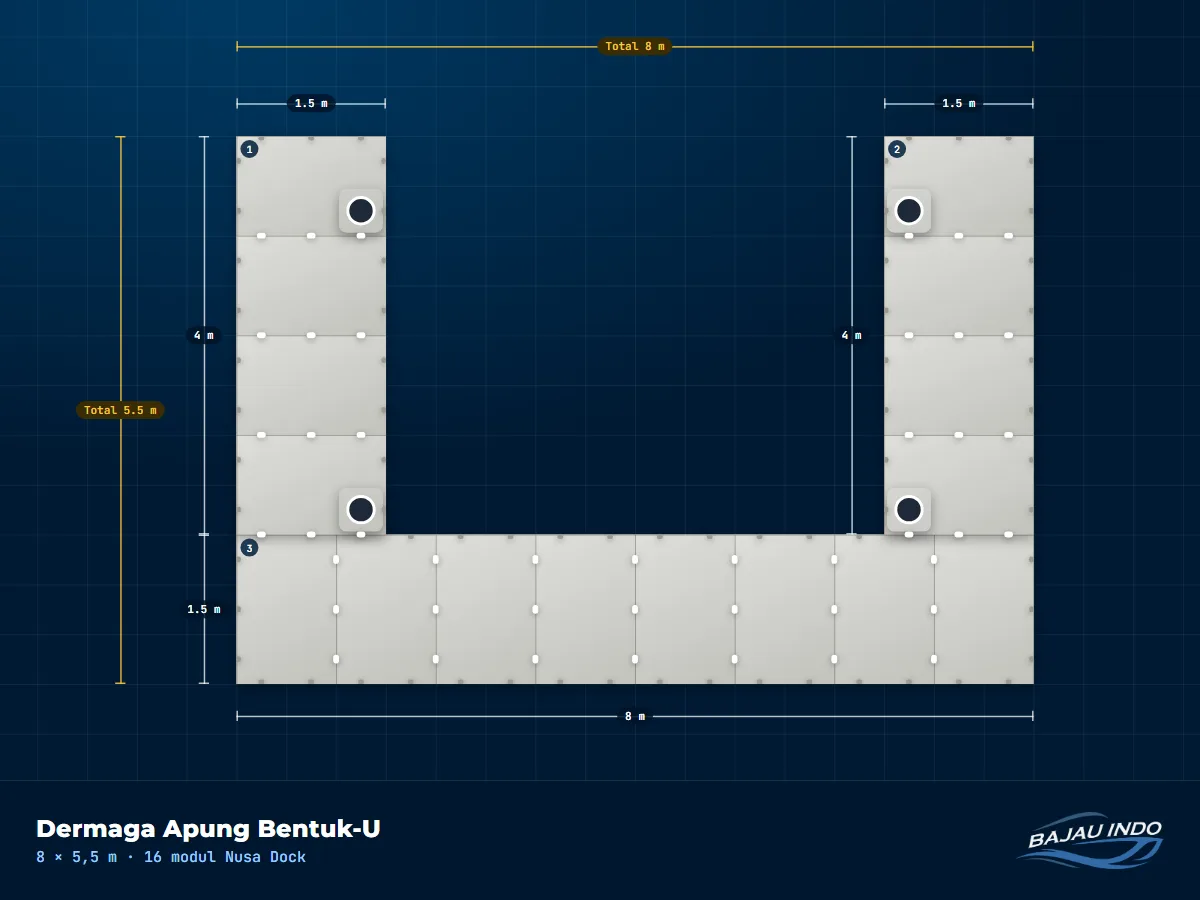

The 8 × 5.5 m U-Shaped Floating Dock forms a berthing pocket in its centre: an 8 × 1.5 m base walkway with two 1.5 × 4 m arms at its ends. The 5-metre-wide, 4-metre-deep slip between the arms lets a small boat or jet ski enter and berth, sheltered on three sides. Users can step on and off from both sides of the craft, which is safer and quicker. Sixteen Nusa Dock modules make the structure solid yet easy to re-configure — for example by adding another arm for a second slip. - Overall size 8 × 5.5 m, 1.5 m walkway width - 16 Nusa Dock modules 150 × 100 × 40 cm, UV-resistant LLDPE with a CFC-free polyurethane core - Deck area 24 m² - Total module buoyancy ±4,400 kg, structure weight ±512 kg - Connectors: 45 Full Lock and 70 Side Covers - 4 mooring cleats - No piles needed — follows tidal and water-level changes - Final load capacity and mooring are calculated by our engineers for your site Need another size or shape? Lay it out yourself in the Nusa Dock Designer (bajauindo.com/drawing/dermaga-nusa-dock) and send the design to our team.
Product Gallery
Product Highlights
Corrosion & extreme UV resistant
LLDPE material resistant to seawater, mud, and direct sunlight exposure.
Polyurethane Insulation
PU core provides stable buoyancy and effectively dampens wave shocks.
Modular & flexible
Can be combined with all other pontoon types for custom dock configurations.
TKDN & ISO Certified
Meets domestic and international product standards, ready for government & private projects.
Ideal For
Drawing Tool
Design your own dock
