Dermaga Marina E-Pier 24 × 12,5 m
A 24 m E-shaped aluminium pier with three 10 m arms forming two berthing basins, reached by a 9 m gangway from the landward side. Complete with pile guides and cleats.
All Products
Product Description

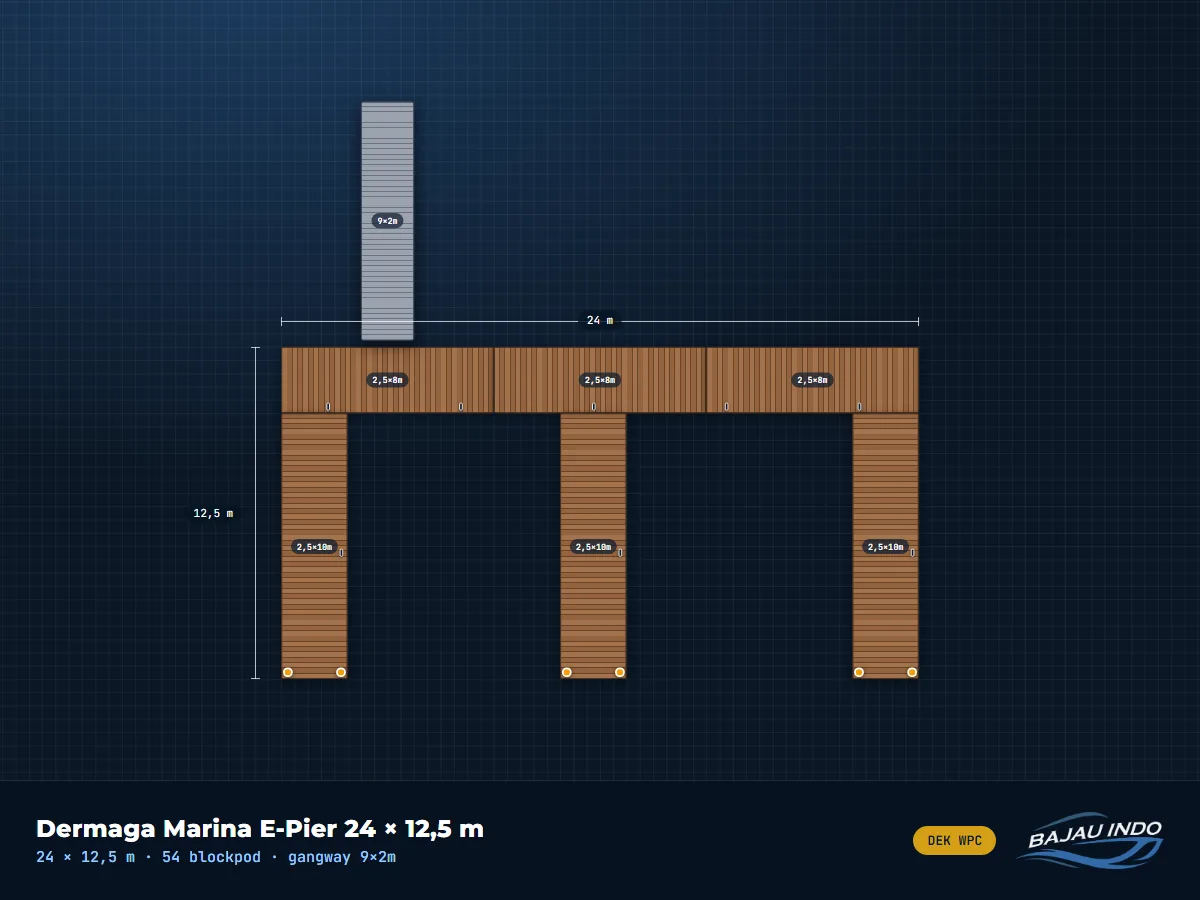

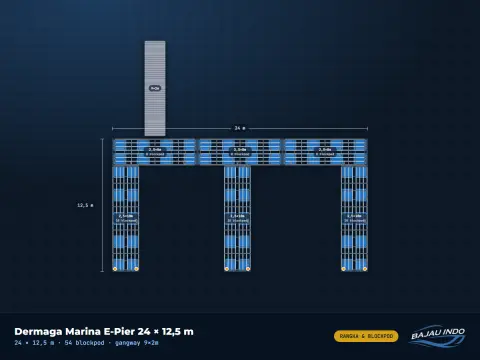

The 24 × 12.5 m Marina E-Pier pairs a 3-section pier running parallel to the shore with three 2.5 × 10 m arms at the start, middle, and end. Two deep berthing basins, sheltered on three sides, form between the arms. With the main pier parallel to the shore and the gangway coming down from land, the E-shape makes efficient use of a long frontage. The middle arm divides the basins and serves as a boarding step for two boats. It suits resort marinas, tour-boat docks, and work-boat bases. - Overall size 24 × 12.5 m (excluding gangway), deck area ±135 m² - Sections: 3 × pontoon 2.5×8m, 3 × pontoon 2.5×10m - Marine-grade aluminium alloy frame, WPC deck - 54 LLDPE floating cubes (blockpods) 120 × 100 cm - 9×2m gangway to shore - 6 pile guides Ø406 mm (16 inch) for guide piles - 8 stainless steel mooring cleats - Final load capacity, pile depth, and mooring are calculated by our engineers for your site Need another shape or size? Lay it out in the Aluminium Dock Designer (bajauindo.com/drawing/dermaga-aluminium) and send the design to our team.
Product Gallery
Product Highlights
Corrosion & extreme UV resistant
LLDPE material resistant to seawater, mud, and direct sunlight exposure.
Polyurethane Insulation
PU core provides stable buoyancy and effectively dampens wave shocks.
Modular & flexible
Can be combined with all other pontoon types for custom dock configurations.
TKDN & ISO Certified
Meets domestic and international product standards, ready for government & private projects.
