Dermaga Marina F-Pier 32 × 12,5 m
A 32 m F-shaped aluminium pier with two 10 m arms (middle and end) forming two berthing basins. 9 m gangway, pile guides at the arm ends, and cleats.
All Products
Product Description

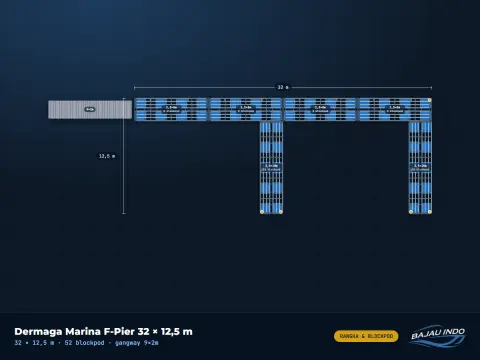

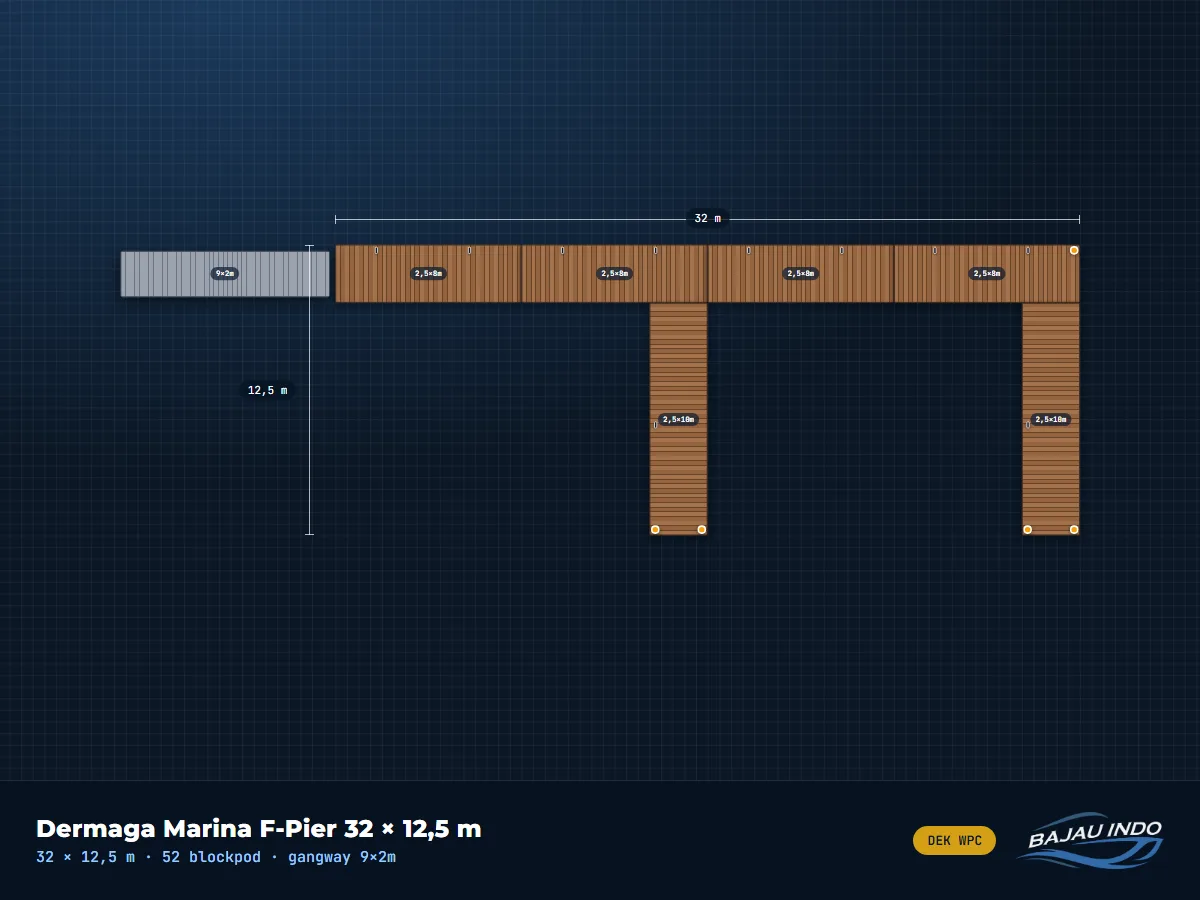

The 32 × 12.5 m Marina F-Pier has a 4-section main pier with two 2.5 × 10 m arms, one in the middle and one at the end. The arms divide the water below the pier into two sheltered basins, each for one or two boats. The upper side of the pier stays free for circulation and extra berths. The F-shape gives flexibility to operators with several boat types, as each basin can be dedicated to particular craft. Pile guides at the arm ends hold the structure against wind and current. - Overall size 32 × 12.5 m (excluding gangway), deck area ±130 m² - Sections: 4 × pontoon 2.5×8m, 2 × pontoon 2.5×10m - Marine-grade aluminium alloy frame, WPC deck - 52 LLDPE floating cubes (blockpods) 120 × 100 cm - 9×2m gangway to shore - 5 pile guides Ø406 mm (16 inch) for guide piles - 10 stainless steel mooring cleats - Final load capacity, pile depth, and mooring are calculated by our engineers for your site Need another shape or size? Lay it out in the Aluminium Dock Designer (bajauindo.com/drawing/dermaga-aluminium) and send the design to our team.
Product Gallery
Product Highlights
Corrosion & extreme UV resistant
LLDPE material resistant to seawater, mud, and direct sunlight exposure.
Polyurethane Insulation
PU core provides stable buoyancy and effectively dampens wave shocks.
Modular & flexible
Can be combined with all other pontoon types for custom dock configurations.
TKDN & ISO Certified
Meets domestic and international product standards, ready for government & private projects.
