Dermaga Marina Pier Lebar 16 × 5 m
An extra-wide 16 × 5 m aluminium pier (two rows of pontoons) for crowds, events, and loading. Spacious WPC deck, 9 m gangway, pile guides, and cleats on both sides.
All Products
Product Description

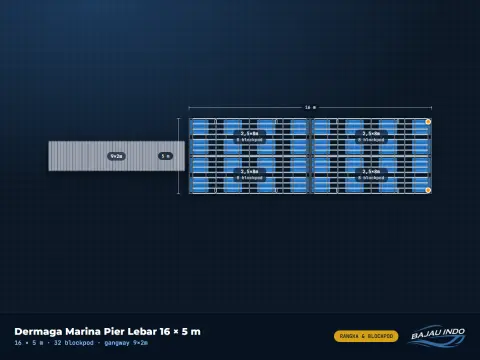

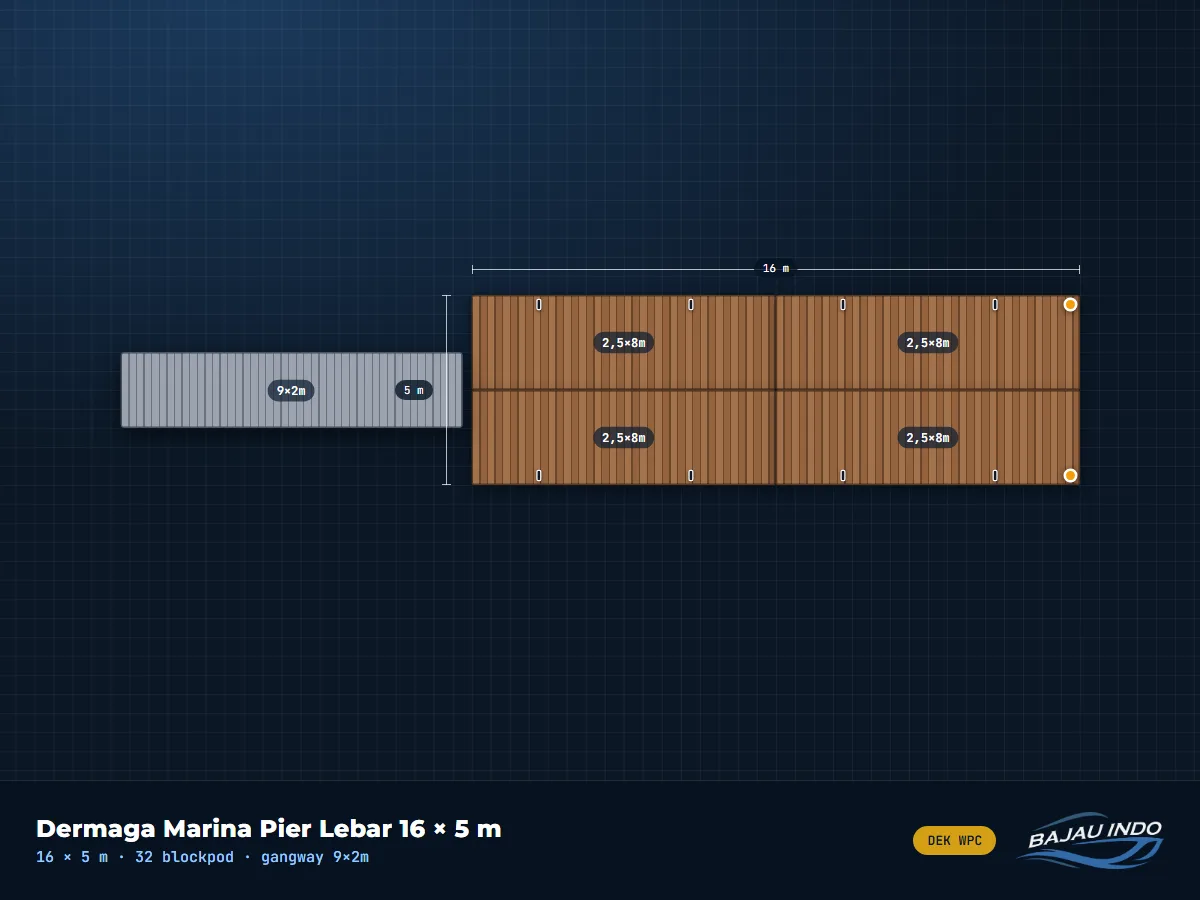

The 16 × 5 m Wide Marina Pier places two rows of 2.5 × 8 m pontoons side by side for a 5-metre deck of about 80 m². That much deck comfortably handles crowds, small kiosks, seating, and loading carts. A wide pier is also steadier because its base is twice as broad — good for tourist harbours that are group meeting points, or docks that double as event space. Both long sides remain available for berthing. - Overall size 16 × 5 m (excluding gangway), deck area ±80 m² - Sections: 4 × pontoon 2.5×8m - Marine-grade aluminium alloy frame, WPC deck - 32 LLDPE floating cubes (blockpods) 120 × 100 cm - 9×2m gangway to shore - 2 pile guides Ø406 mm (16 inch) for guide piles - 8 stainless steel mooring cleats - Final load capacity, pile depth, and mooring are calculated by our engineers for your site Need another shape or size? Lay it out in the Aluminium Dock Designer (bajauindo.com/drawing/dermaga-aluminium) and send the design to our team.
Product Gallery
Product Highlights
Corrosion & extreme UV resistant
LLDPE material resistant to seawater, mud, and direct sunlight exposure.
Polyurethane Insulation
PU core provides stable buoyancy and effectively dampens wave shocks.
Modular & flexible
Can be combined with all other pontoon types for custom dock configurations.
TKDN & ISO Certified
Meets domestic and international product standards, ready for government & private projects.
