Dermaga Marina U-Basin 32 × 12,5 m
A 32 × 12.5 m U-shaped aluminium dock with a berthing basin sheltered on three sides, for boats that need a calm berth. 9 m gangway, pile guides, and cleats.
All Products
Product Description

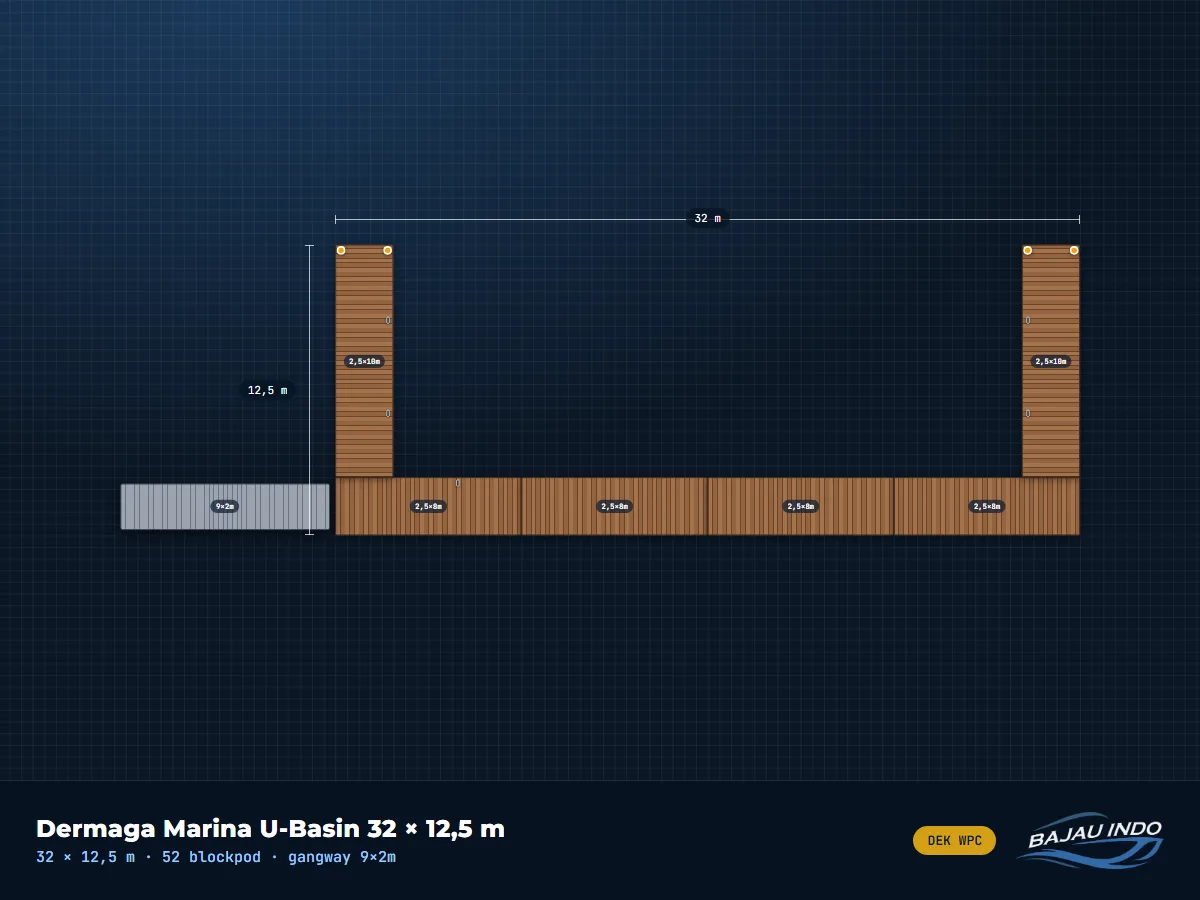

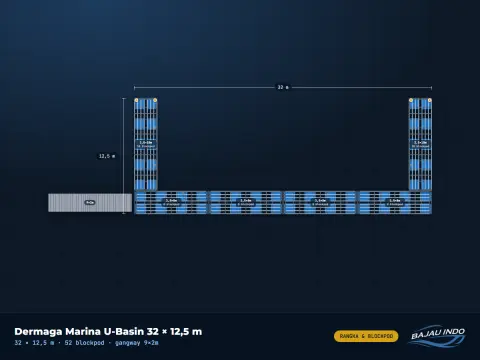

The 32 × 12.5 m Marina U-Basin consists of a 4-section base pier (2.5 × 8 m) and two 2.5 × 10 m arms at its ends. Between the arms is a berthing basin sheltered on three sides, keeping the boat inside away from waves and crosscurrents. Passengers can board from both sides of the boat at once, and the crew can moor more easily with footing on three sides. The shape suits premium tour boats, small passenger boats, or work boats that need safe loading. - Overall size 32 × 12.5 m (excluding gangway), deck area ±130 m² - Sections: 4 × pontoon 2.5×8m, 2 × pontoon 2.5×10m - Marine-grade aluminium alloy frame, WPC deck - 52 LLDPE floating cubes (blockpods) 120 × 100 cm - 9×2m gangway to shore - 4 pile guides Ø406 mm (16 inch) for guide piles - 5 stainless steel mooring cleats - Final load capacity, pile depth, and mooring are calculated by our engineers for your site Need another shape or size? Lay it out in the Aluminium Dock Designer (bajauindo.com/drawing/dermaga-aluminium) and send the design to our team.
Product Gallery
Product Highlights
Corrosion & extreme UV resistant
LLDPE material resistant to seawater, mud, and direct sunlight exposure.
Polyurethane Insulation
PU core provides stable buoyancy and effectively dampens wave shocks.
Modular & flexible
Can be combined with all other pontoon types for custom dock configurations.
TKDN & ISO Certified
Meets domestic and international product standards, ready for government & private projects.
Ideal For
Drawing Tool
Design your own dock
