Dermaga Marina Silang 24 × 22,5 m
A cross-shaped aluminium dock: a 24 m pier with 10 m arms up and down at its middle, forming four berthing corners. 9 m gangway, pile guides, and cleats.
All Products
Product Description

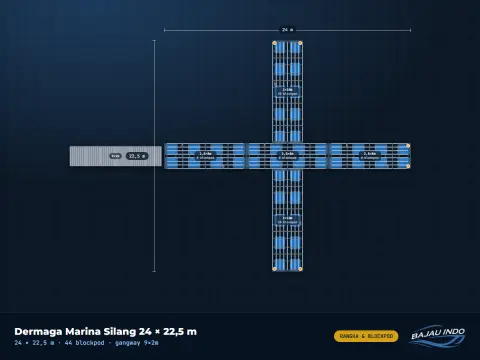

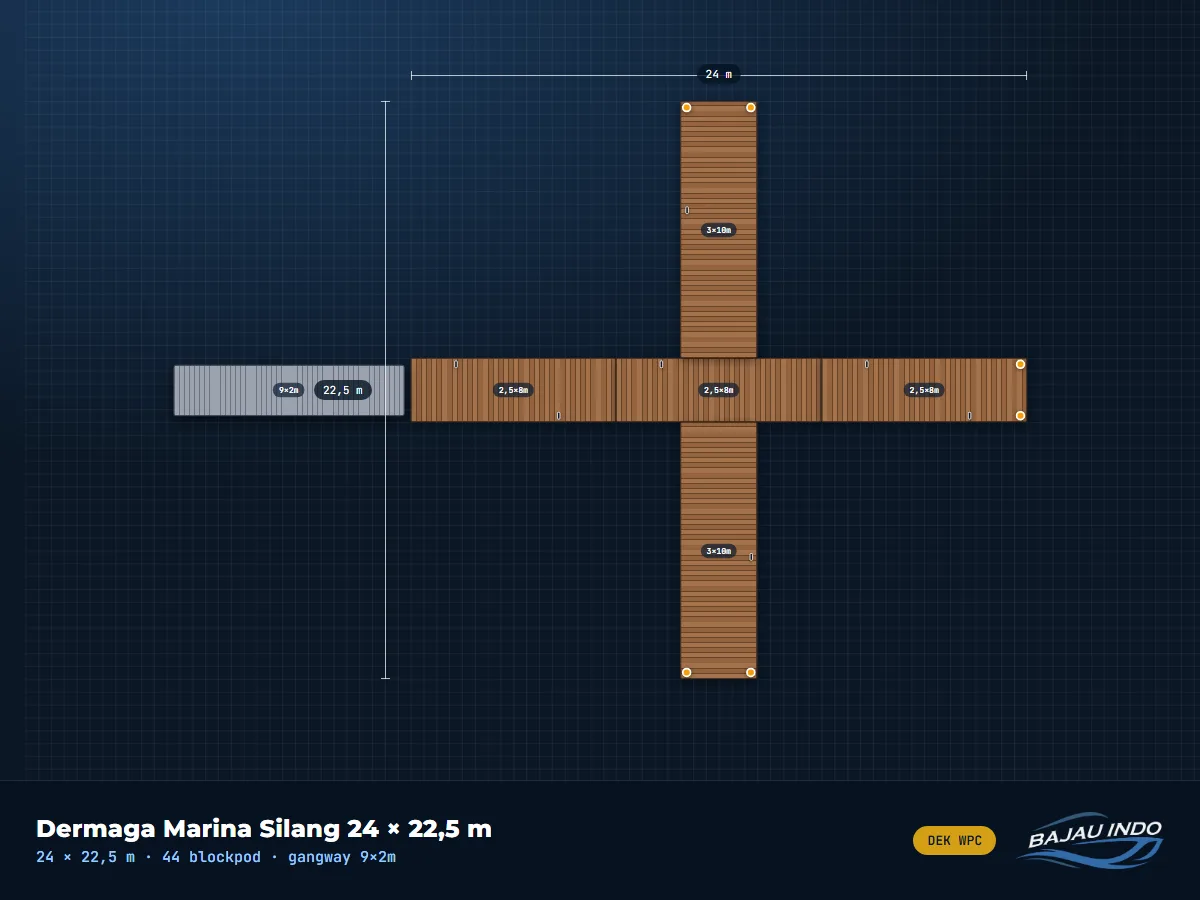

The 24 × 22.5 m Cross Marina Dock combines a 3-section straight pier with two 3 × 10 m pontoon arms crossing it at the middle, up and down. The cross shape creates four sheltered berthing corners facing different directions. Boats can choose the most sheltered corner for the day's wind, keeping the dock usable in every season. The arm ends carry pile guides, and the iconic shape is also a visual landmark on the water. - Overall size 24 × 22.5 m (excluding gangway), deck area ±120 m² - Sections: 3 × pontoon 2.5×8m, 2 × pontoon 3×10m - Marine-grade aluminium alloy frame, WPC deck - 44 LLDPE floating cubes (blockpods) 120 × 100 cm - 9×2m gangway to shore - 6 pile guides Ø406 mm (16 inch) for guide piles - 7 stainless steel mooring cleats - Final load capacity, pile depth, and mooring are calculated by our engineers for your site Need another shape or size? Lay it out in the Aluminium Dock Designer (bajauindo.com/drawing/dermaga-aluminium) and send the design to our team.
Product Gallery
Product Highlights
Corrosion & extreme UV resistant
LLDPE material resistant to seawater, mud, and direct sunlight exposure.
Polyurethane Insulation
PU core provides stable buoyancy and effectively dampens wave shocks.
Modular & flexible
Can be combined with all other pontoon types for custom dock configurations.
TKDN & ISO Certified
Meets domestic and international product standards, ready for government & private projects.
Ideal For
Drawing Tool
Design your own dock
