Dermaga Marina dengan Platform Tunggu 30 × 10 m
An aluminium pier with a 6 × 10 m waiting platform midway. Passengers wait on the platform while boats berth around it; 9 m gangway, pile guides, and cleats.
All Products
Product Description

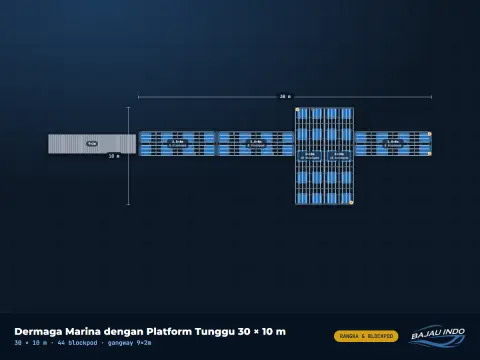

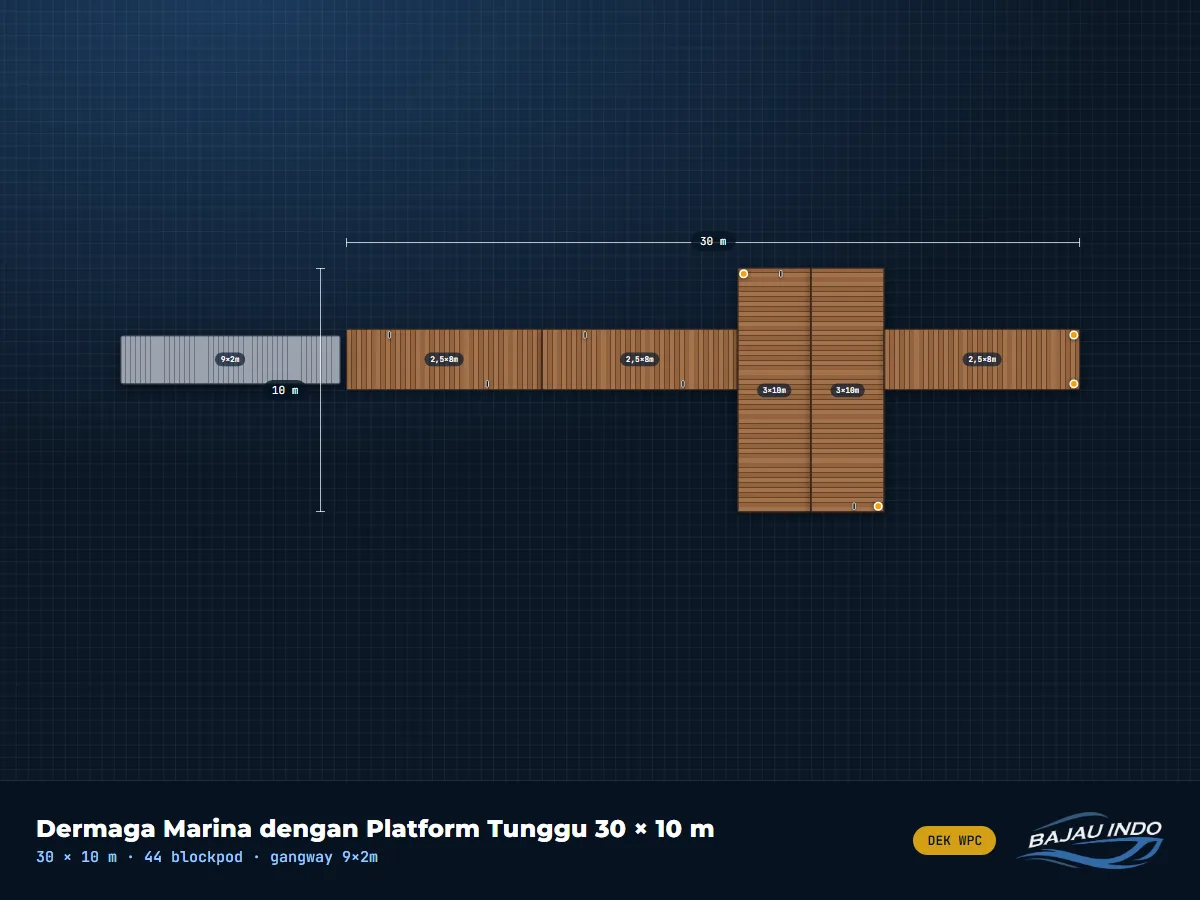

The 30 × 10 m Marina with Waiting Platform inserts a 6 × 10 m platform (two 3 × 10 m pontoons) midway along the pier. The platform becomes a passenger waiting room, ticket point, or rest area, while the pier continues out to deeper water. This keeps waiting passengers out of the walkway, and boats can berth along the platform as well as at the pier end. The platform can take a light roof or benches as needed, and pile guides at its corners keep it stable. - Overall size 30 × 10 m (excluding gangway), deck area ±120 m² - Sections: 3 × pontoon 2.5×8m, 2 × pontoon 3×10m - Marine-grade aluminium alloy frame, WPC deck - 44 LLDPE floating cubes (blockpods) 120 × 100 cm - 9×2m gangway to shore - 4 pile guides Ø406 mm (16 inch) for guide piles - 6 stainless steel mooring cleats - Final load capacity, pile depth, and mooring are calculated by our engineers for your site Need another shape or size? Lay it out in the Aluminium Dock Designer (bajauindo.com/drawing/dermaga-aluminium) and send the design to our team.
Product Gallery
Product Highlights
Corrosion & extreme UV resistant
LLDPE material resistant to seawater, mud, and direct sunlight exposure.
Polyurethane Insulation
PU core provides stable buoyancy and effectively dampens wave shocks.
Modular & flexible
Can be combined with all other pontoon types for custom dock configurations.
TKDN & ISO Certified
Meets domestic and international product standards, ready for government & private projects.
Ideal For
Drawing Tool
Design your own dock
