Dermaga Marina T dengan Jari Sandar 34,5 × 20 m
An aluminium T-pier with a 3 × 20 m head and two 7.5 m berthing fingers on its outer side. Combines berths for large boats and small craft; 9 m gangway, pile guides, cleats.
All Products
Product Description

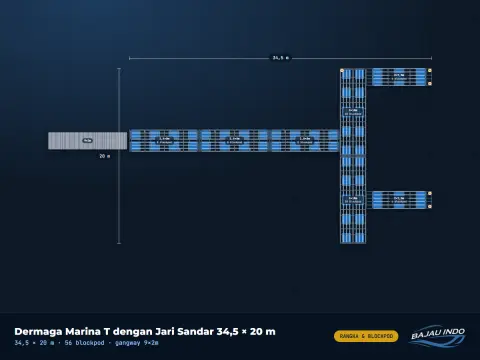

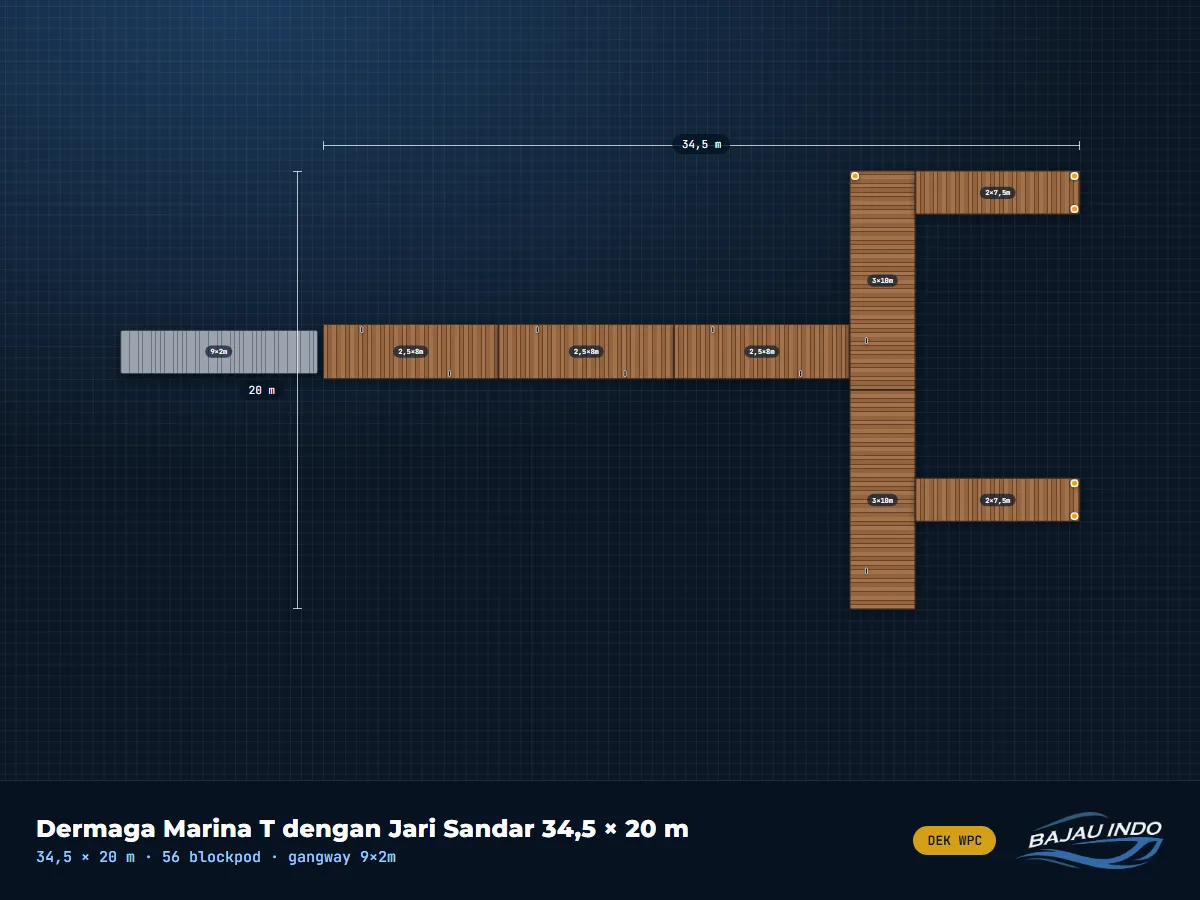

The 34.5 × 20 m Marina T with Berthing Fingers has a 3-section walkway ending in a long 3 × 20 m head made of two 3 × 10 m pontoons. Two 2 × 7.5 m fingers are fitted on the outer side of the head, so it serves large boats on the inside and small craft between the fingers. The combination suits marinas that want to serve their main tour boats and speedboats or tenders in one structure. Pile guides at the finger tips and head corners hold the dock in place, and cleats along the walkway add mooring points. - Overall size 34.5 × 20 m (excluding gangway), deck area ±150 m² - Sections: 2 × pontoon 2×7.5m, 3 × pontoon 2.5×8m, 2 × pontoon 3×10m - Marine-grade aluminium alloy frame, WPC deck - 56 LLDPE floating cubes (blockpods) 120 × 100 cm - 9×2m gangway to shore - 5 pile guides Ø406 mm (16 inch) for guide piles - 8 stainless steel mooring cleats - Final load capacity, pile depth, and mooring are calculated by our engineers for your site Need another shape or size? Lay it out in the Aluminium Dock Designer (bajauindo.com/drawing/dermaga-aluminium) and send the design to our team.
Product Gallery
Product Highlights
Corrosion & extreme UV resistant
LLDPE material resistant to seawater, mud, and direct sunlight exposure.
Polyurethane Insulation
PU core provides stable buoyancy and effectively dampens wave shocks.
Modular & flexible
Can be combined with all other pontoon types for custom dock configurations.
TKDN & ISO Certified
Meets domestic and international product standards, ready for government & private projects.
