Dermaga Apung Bentuk-E 6,5 × 10 m

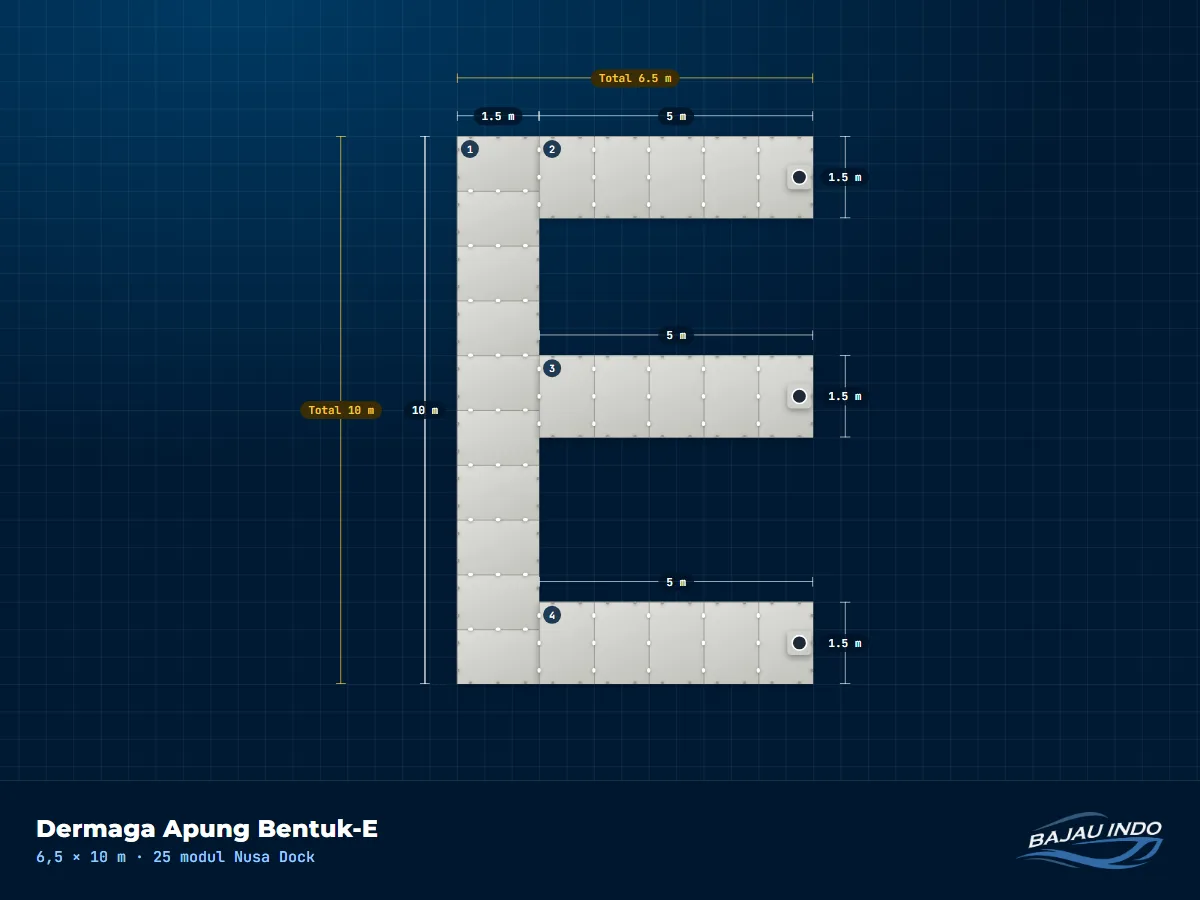

An E-shaped floating dock: a 10-metre walkway with three 5-metre arms. Two sheltered berthing pockets form between the arms — room for two boats at once.
All Products
Product Description
The 6.5 × 10 m E-Shaped Floating Dock combines a 10-metre straight walkway along the shore with three 5-metre arms. Between the top, middle, and bottom arms are two berthing pockets sheltered on three sides, so two boats can berth at once without being pushed by crosscurrents. With the main walkway parallel to the shoreline, the E-shape makes good use of long but shallow waterfronts. Passengers can board from both sides of each boat, and the middle arm doubles as a divider between craft. It is often chosen for resort boat docks, fishing-tour boats, and small crossing facilities. - Overall size 6.5 × 10 m, 1.5 m walkway width - 25 Nusa Dock modules 150 × 100 × 40 cm, UV-resistant LLDPE with a CFC-free polyurethane core - Deck area 37.5 m² - Total module buoyancy ±6,875 kg, structure weight ±800 kg - Connectors: 72 Full Lock and 106 Side Covers - 3 mooring cleats - No piles needed — follows tidal and water-level changes - Final load capacity and mooring are calculated by our engineers for your site Need another size or shape? Lay it out yourself in the Nusa Dock Designer (bajauindo.com/drawing/dermaga-nusa-dock) and send the design to our team.
Product Gallery
Product Highlights
Corrosion & extreme UV resistant
LLDPE material resistant to seawater, mud, and direct sunlight exposure.
Polyurethane Insulation
PU core provides stable buoyancy and effectively dampens wave shocks.
Modular & flexible
Can be combined with all other pontoon types for custom dock configurations.
TKDN & ISO Certified
Meets domestic and international product standards, ready for government & private projects.
Ideal For
Drawing Tool
Design your own dock
