Dermaga Apung Bentuk-H 8 × 6 m
An H-shaped floating dock: two parallel 6-metre walkways joined by a 5-metre bridge. Boats can berth on all four outer sides as well as inside both bays.
All Products
Product Description

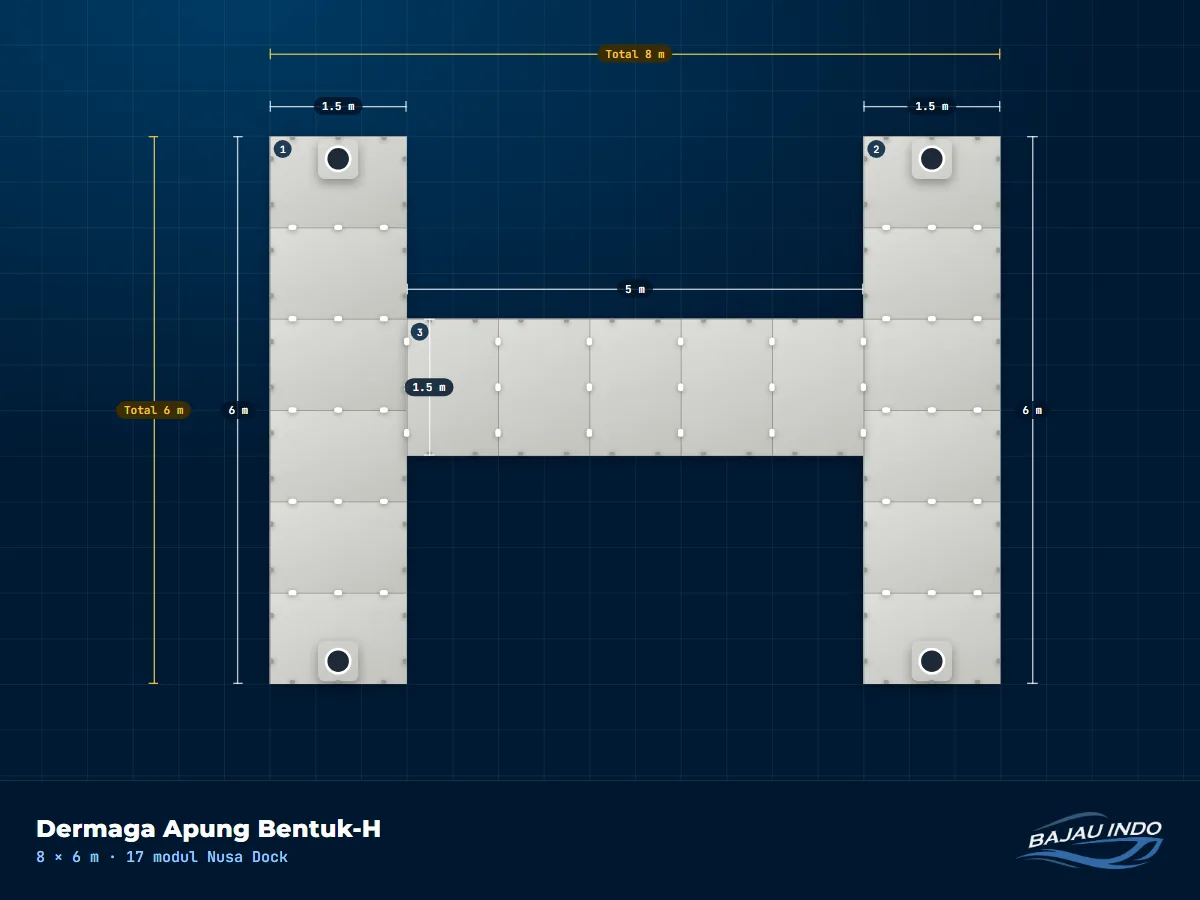

The 8 × 6 m H-Shaped Floating Dock consists of two parallel 1.5 × 6 m walkways joined by a 5-metre central section. The result is two small bays at the top and bottom, plus the outer sides of both walkways for berthing — many mooring points in one compact structure. The H-shape works well out on the water as a transit dock, for example on a tourist lake where boats arrive from different directions. Its symmetry makes it stable, and the central section can serve as a waiting area or a simple ticket point. - Overall size 8 × 6 m, 1.5 m walkway width - 17 Nusa Dock modules 150 × 100 × 40 cm, UV-resistant LLDPE with a CFC-free polyurethane core - Deck area 25.5 m² - Total module buoyancy ±4,675 kg, structure weight ±544 kg - Connectors: 48 Full Lock and 74 Side Covers - 4 mooring cleats - No piles needed — follows tidal and water-level changes - Final load capacity and mooring are calculated by our engineers for your site Need another size or shape? Lay it out yourself in the Nusa Dock Designer (bajauindo.com/drawing/dermaga-nusa-dock) and send the design to our team.
Product Gallery
Product Highlights
Corrosion & extreme UV resistant
LLDPE material resistant to seawater, mud, and direct sunlight exposure.
Polyurethane Insulation
PU core provides stable buoyancy and effectively dampens wave shocks.
Modular & flexible
Can be combined with all other pontoon types for custom dock configurations.
TKDN & ISO Certified
Meets domestic and international product standards, ready for government & private projects.
Ideal For
Drawing Tool
Design your own dock
