Dermaga Apung Bentuk-F 8,5 × 8 m
An F-shaped floating dock: an 8-metre walkway with a 7-metre long arm and a 4-metre short arm. Two berth sizes for large and small boats in one dock.
All Products
Product Description

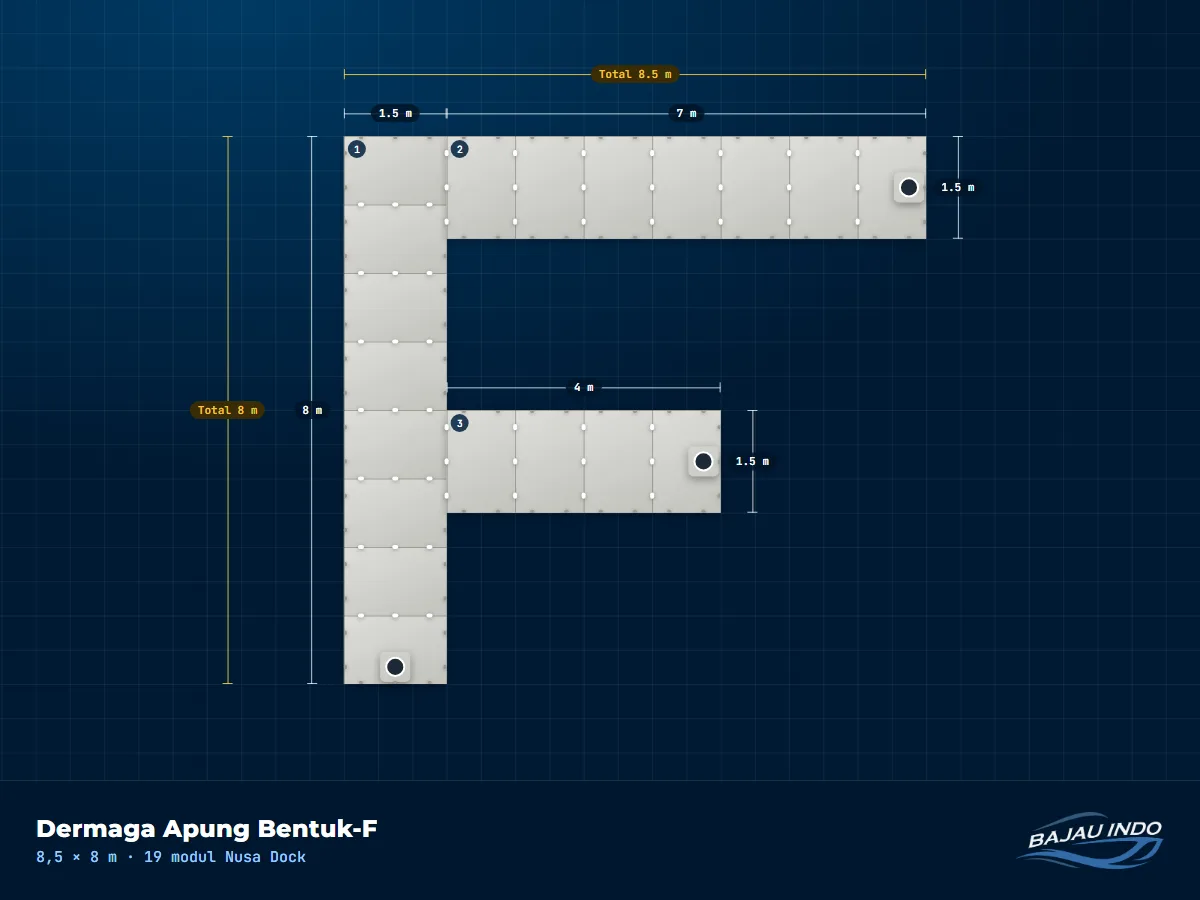

The 8.5 × 8 m F-Shaped Floating Dock offers two berth sizes in one structure. An 8-metre vertical walkway forms the spine, with a 7-metre top arm for longer boats and a 4-metre middle arm for small boats, canoes, or jet skis. The asymmetric shape helps when a fleet mixes boat types: tour boats berth on the long arm, while small or service boats use the short arm. The space between the arms becomes a sheltered berthing pocket, and the lower part of the walkway stays clear as the access route from shore. - Overall size 8.5 × 8 m, 1.5 m walkway width - 19 Nusa Dock modules 150 × 100 × 40 cm, UV-resistant LLDPE with a CFC-free polyurethane core - Deck area 28.5 m² - Total module buoyancy ±5,225 kg, structure weight ±608 kg - Connectors: 54 Full Lock and 82 Side Covers - 3 mooring cleats - No piles needed — follows tidal and water-level changes - Final load capacity and mooring are calculated by our engineers for your site Need another size or shape? Lay it out yourself in the Nusa Dock Designer (bajauindo.com/drawing/dermaga-nusa-dock) and send the design to our team.
Product Gallery
Product Highlights
Corrosion & extreme UV resistant
LLDPE material resistant to seawater, mud, and direct sunlight exposure.
Polyurethane Insulation
PU core provides stable buoyancy and effectively dampens wave shocks.
Modular & flexible
Can be combined with all other pontoon types for custom dock configurations.
TKDN & ISO Certified
Meets domestic and international product standards, ready for government & private projects.
