Dermaga Marina Zig-Zag 29,5 × 15 m
A zig-zag aluminium pier with two 16 m segments joined by a 10 m link, reaching deep water while avoiding obstacles. 9 m gangway, pile guides, and cleats.
All Products
Product Description

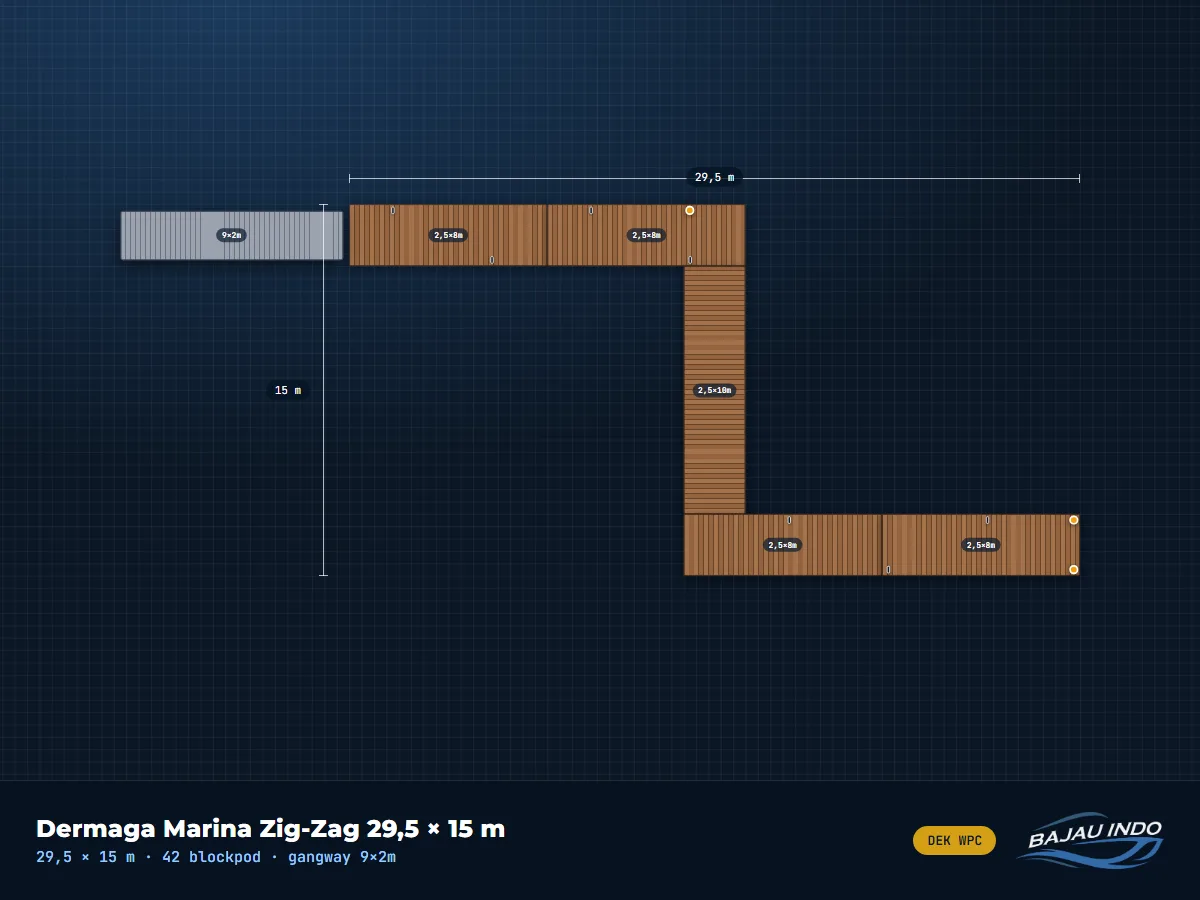

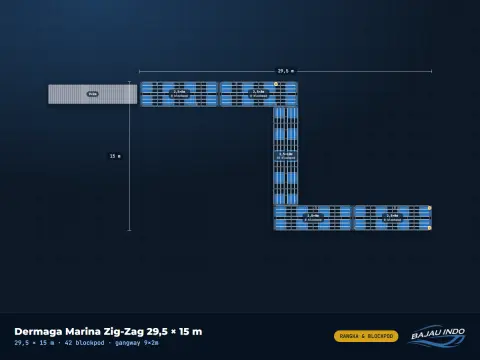

The 29.5 × 15 m Zig-Zag Marina Pier has two 16-metre pier segments joined by a 2.5 × 10 m link, shifting the route sideways. The shape helps when a straight line to deep water is blocked by reef, rocks, old piles, or property limits. The winding route also gives two separate berthing areas: the inshore segment for small boats and the deeper outer segment for larger ones. Pile guides at the outer end hold the dock, and cleats on both segments provide moorings. - Overall size 29.5 × 15 m (excluding gangway), deck area ±105 m² - Sections: 4 × pontoon 2.5×8m, 1 × pontoon 2.5×10m - Marine-grade aluminium alloy frame, WPC deck - 42 LLDPE floating cubes (blockpods) 120 × 100 cm - 9×2m gangway to shore - 3 pile guides Ø406 mm (16 inch) for guide piles - 7 stainless steel mooring cleats - Final load capacity, pile depth, and mooring are calculated by our engineers for your site Need another shape or size? Lay it out in the Aluminium Dock Designer (bajauindo.com/drawing/dermaga-aluminium) and send the design to our team.
Product Gallery
Product Highlights
Corrosion & extreme UV resistant
LLDPE material resistant to seawater, mud, and direct sunlight exposure.
Polyurethane Insulation
PU core provides stable buoyancy and effectively dampens wave shocks.
Modular & flexible
Can be combined with all other pontoon types for custom dock configurations.
TKDN & ISO Certified
Meets domestic and international product standards, ready for government & private projects.
