Dermaga Apung 10 × 3 m dengan Gangway 6 m
A 10 × 3 m floating dock with a 6-metre gangway linking it to the shore or a seawall. The gangway adjusts its slope as the water level rises and falls.
All Products
Product Description

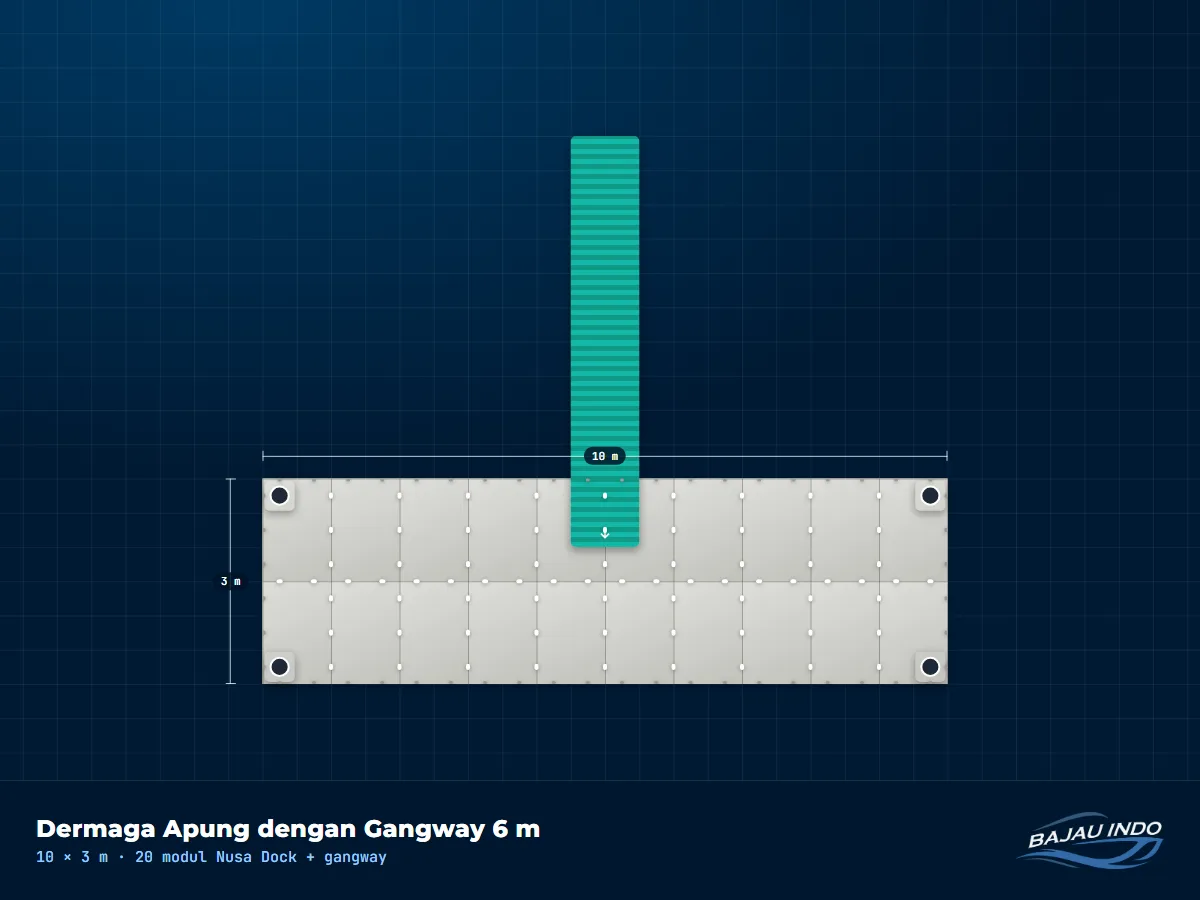

The 10 × 3 m Floating Dock with a 6 m Gangway is the answer for sites where the bank sits above the water, such as seawalls, embankments, or old concrete wharves. The 6-metre gangway rests on land at one end and on the floating deck at the other, so its slope changes with the tide without cutting off access. The 30 m² floating deck gives ample room for passengers and cargo, with both long sides available for berthing. The combination is common at community harbours, coastal areas with large tidal ranges, and reservoirs whose level changes seasonally. - Overall size 10 × 3 m, 1.5 m walkway width - 20 Nusa Dock modules 150 × 100 × 40 cm, UV-resistant LLDPE with a CFC-free polyurethane core - Deck area 30 m² - Total module buoyancy ±5,500 kg, structure weight ±640 kg - Connectors: 74 Full Lock and 52 Side Covers - 4 mooring cleats - No piles needed — follows tidal and water-level changes - Final load capacity and mooring are calculated by our engineers for your site Need another size or shape? Lay it out yourself in the Nusa Dock Designer (bajauindo.com/drawing/dermaga-nusa-dock) and send the design to our team.
Product Gallery
Product Highlights
Corrosion & extreme UV resistant
LLDPE material resistant to seawater, mud, and direct sunlight exposure.
Polyurethane Insulation
PU core provides stable buoyancy and effectively dampens wave shocks.
Modular & flexible
Can be combined with all other pontoon types for custom dock configurations.
TKDN & ISO Certified
Meets domestic and international product standards, ready for government & private projects.
Ideal For
Drawing Tool
Design your own dock
